Taege Uni Drills
- Simple no frills unit.
- Excellent value with great results.
- Gives excellent penetration in extremely hard conditions.
- Creates outstanding tilth, giving much higher strike rates.
- Contour following ensuring more seed is where you want it to be.
- Less rock and existing grass pull-out.
- Simple construction, less moving parts reduces down-time, repair and maintenance costs.
- Ability to drill around corners
- Live tynes give better trash clearing.
Standard Features
- Galvanised frame
- Powder coated seed bin
- Tray for calibration
- Electronic touch screen monitor
- 3.0m harrow set
- Calibration scales
- Rear draw bar
Optional Upgrades
- Small seed inserts with high baffles
- Sponge protectors (per bin)
- Broadcasting system
- LED light kit with hazard panels
- Seed box agitator kit
UD300 Uni Drill
This practical, no-frills 3-point linkage unit still has all you need.
Accurate, easy to calibrate, seed metering and great contour following delivers seed
where you want it to be, plus the ability to drill around corners with live tynes.
Superior penetration and germination results in all suitable conditions.
| Model | UD300 |
|---|---|
| Size | 3m Uni Drill |
| Row spacing (mm) | 150 / 121 |
| Sowing width (mm) | 2888 |
| Overall width (mm) | 3400 |
| Overall height (mm) | 2000 |
| Number of tynes | 19 / 23 |
| Number of tyne rows | 2 |
| Tyne row stagger (mm) | 565 |
| Seed box capacity (L) | 504 |
| Working speed (kph) | 2-14 |
| Tractor HP Required (min) | 65 |
| Approx. weight (kg) | 950 |
“My Taege 3m utility seeder is a winner. User friendly and built to withstand all types of challenges compared to its competition”

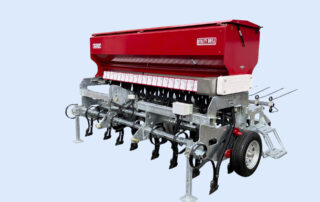

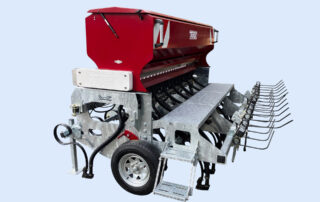

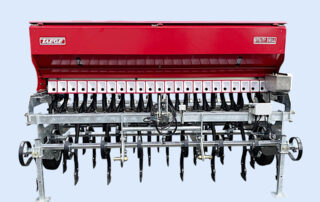

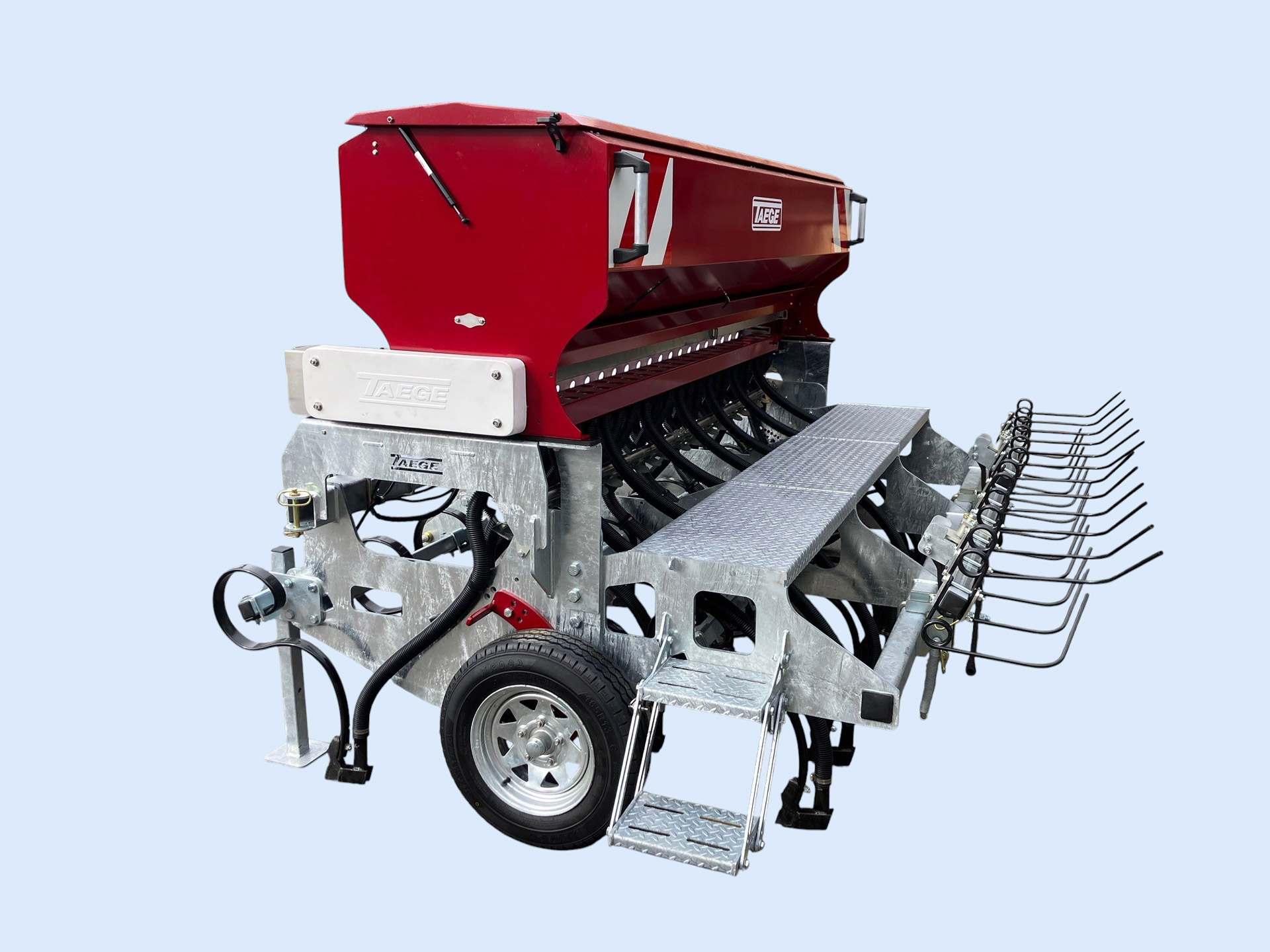

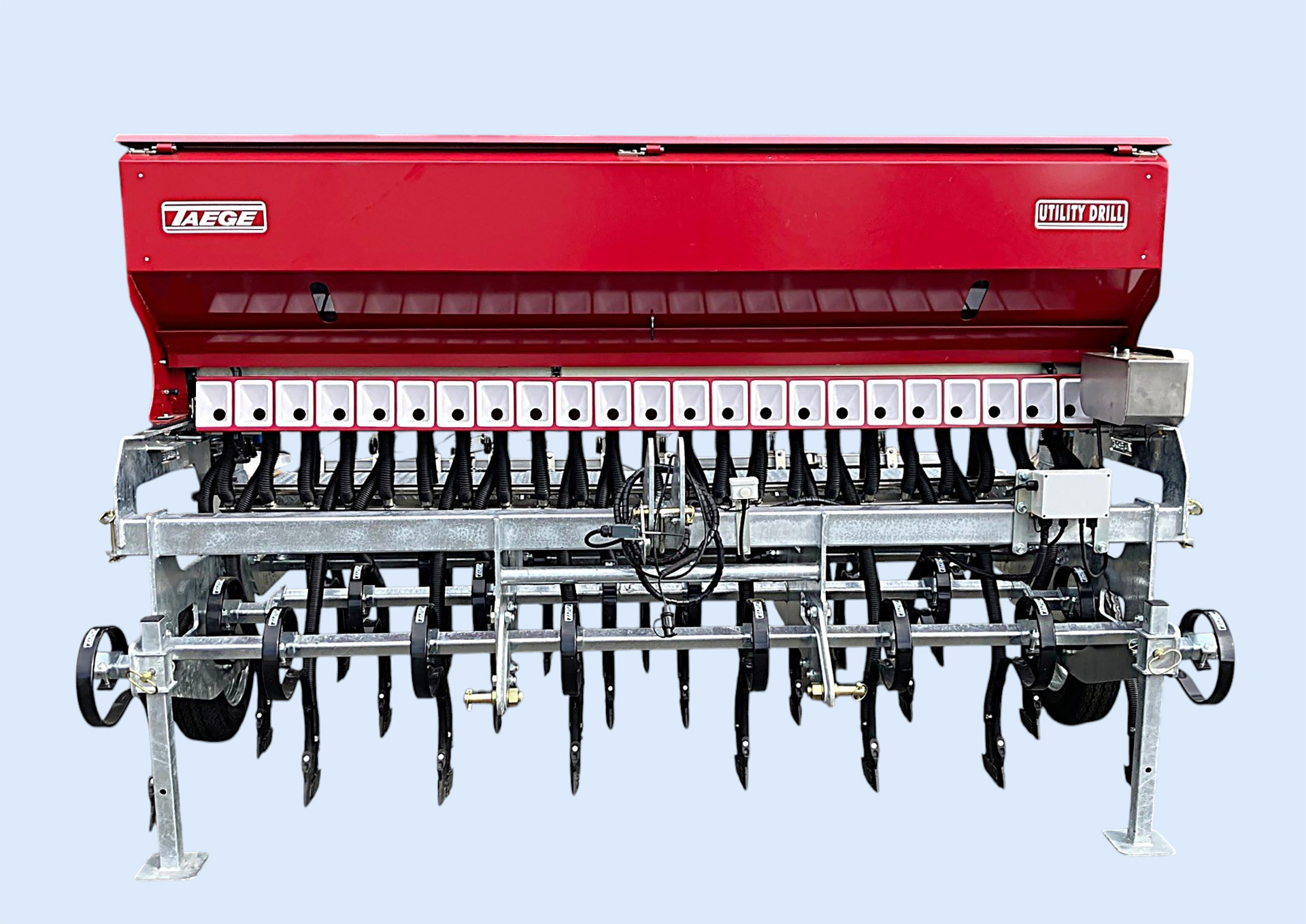

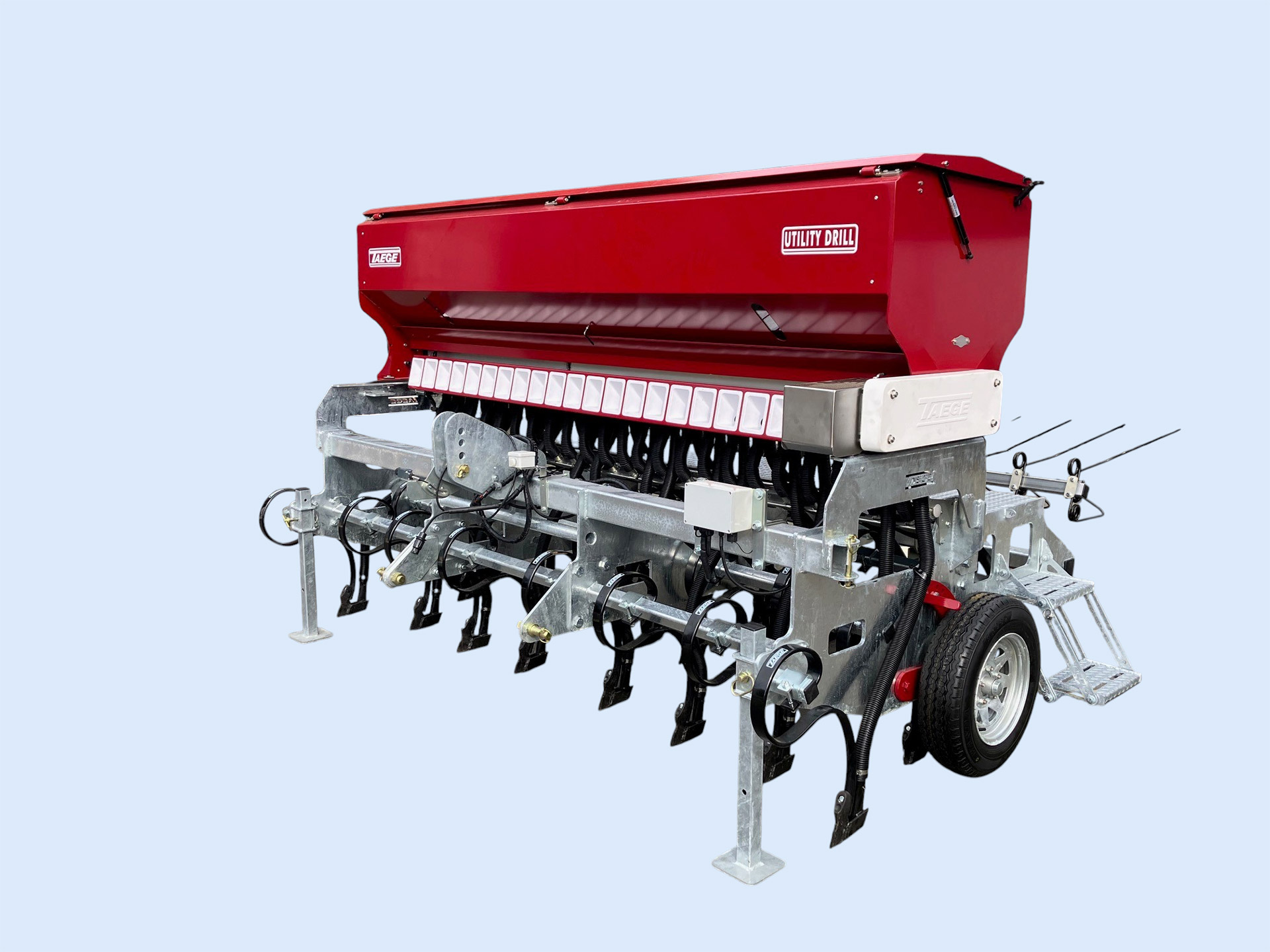

UD1000 Uni Drill
TILTH GROWS SEED.
3-point linkage, primarily for up on the steepest hills, or drilling after crop.
This unit has a 1000 litre hopper with 3 tool bars.
The hopper is centrally positioned on the middle of the frame to allow fall on all hoses no matter the hill angle.
Same Computer controller seed rate and award wining tyne patented system as all other Taege Drills for both DIRECT DRILLING and WORKED GROUND.
For clients who prefer a 3-point linkage drill over a trailed unit with added points of difference.
All Taege uni drills come standard with:
Computerised sponge metering system: Standard on all our models which provides fast, easy and accurate calibration without the risk of seed damage.

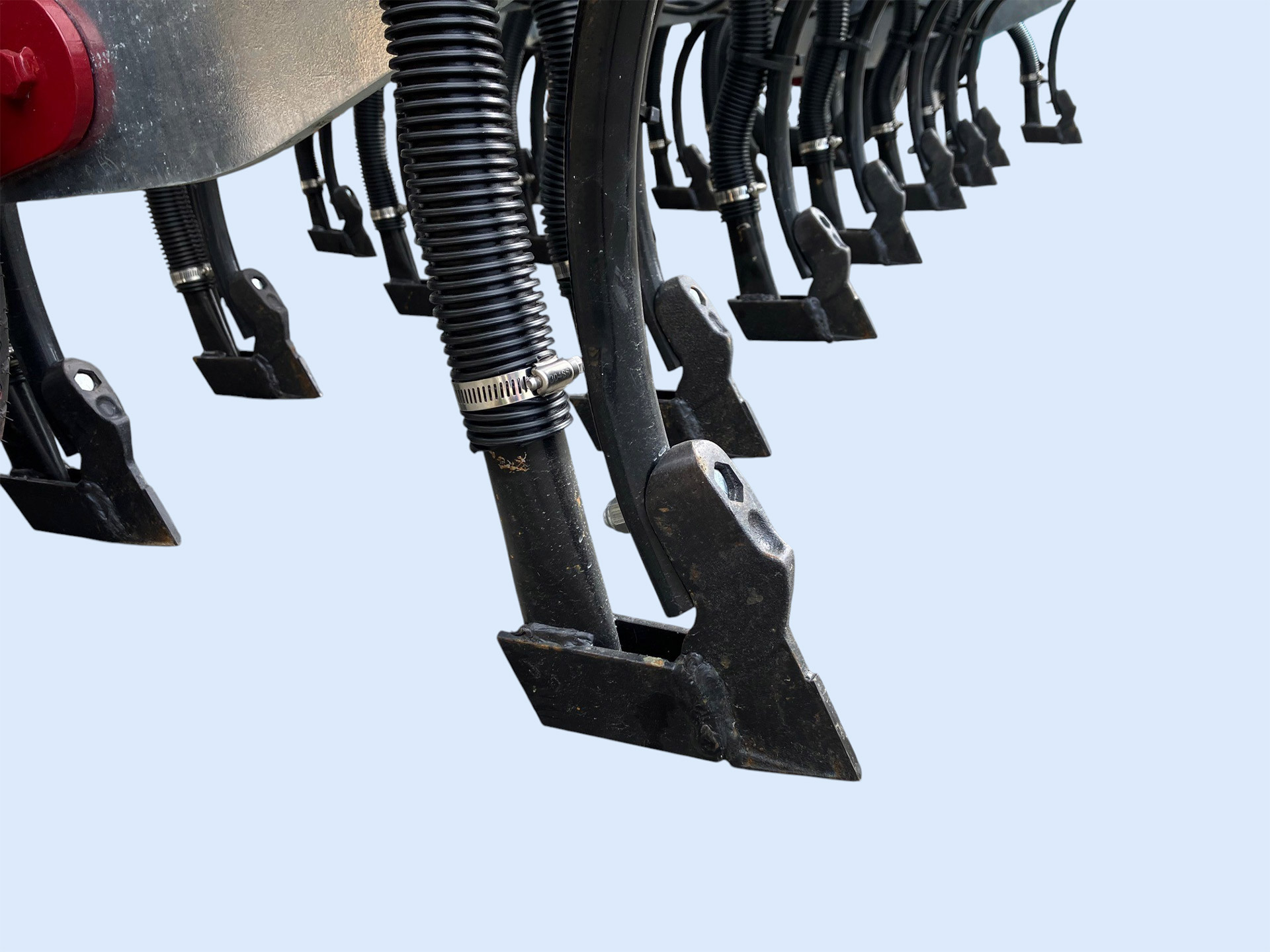

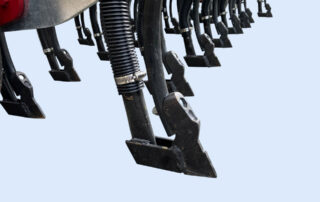

Very flexible ‘S’ tynes: Set on a patented angle combined with Taege boots and hard wearing narrow Tungsten faced tips, it’s a vastly different set up to other tyne drills.
Strong, fully welded, hot dipped galvanised frame and brackets: Ensuring the longevity of your investment.
